square – frame

modules. shingles. tiny.

2018⋅09⋅17 NS ColemanLeave a comment

Today is another foray into the world of tiny homes. Since they’re all the craze, and lend themselves to most often less-than-inspiring forms with ramshackle facades and haphazard plans, I thought I’d take a stab at taming this faddy beast.

An 8’0″ module dominates (primarily dictated by Department of Transportation trailer width standards), broken down into a smaller 2’8″ framing module. Programmatically, the home is symmetrically loaded, with core spaces taking up the center module while a public living room occupies one end and a private bedroom the other. The elevations are thoroughly shingled, in keeping with a preference for light-weight wood frame construction, with a lofted ceiling reaches the maximum 13’6″ allowable per DoT.

In a slightly different frame, the bottom variation takes its plan from the iconic Air Stream trailers, but disguising its streamlined roots in the equally plastic form of the wooden shingle – the Air Shingle.

two squares, many arches

2018⋅08⋅302018⋅08⋅30 NS ColemanLeave a comment

It’s been far too long – apologies are in order.

But today it’s back to basics: square and arches. The first project is a simple study of a simple idea, instigated by an awful homespun diy renovation in my neighborhood, where a series of plaster arches had been tacked up under a shallow roof overhang, obscuring the clapboard home beneath. I’ve ordered it a bit more, rendered in a square with access via brick steps at the corners – a four square clapboard home sheltered behind a humanist arcade.

The second project is another simple pavilion, this time with rounded corners and centralized access. A quick study to the right explores an arcuated form, with a centralized column instead, harkening back to the four square plan mentioned above.

a kitchen in the round

2018⋅07⋅10 NS ColemanLeave a comment

Today’s post is a continuation of the previous week’s. Here, I’ve blown-up the kitchen proper, which like my grandparents’ kitchen that inspired it, has a large central island. Where theirs was square, though, I’ve rendered it circular, in homage to Sir Edwin Lutyens’ great subterranean kitchen at Castle Drogo. Similarly to Lutyens’, I’ve topped it with a great circular skylight as well, to bring ample daylight into the workspace. For a stroke of my own interest, I’ve placed a small breakfast nook to the south, which takes cues from Frank Lloyd Wright’s many inglenooks that dotted his earliest works.

a skylit studio

2018⋅05⋅31 NS ColemanLeave a comment

After taking a little well-needed vacation, I’m back with more frame. Specifically, I’m sharing a continuation of the past two posts – a hillside studio and home. Both of these projects included a small cubic volume topped with a pyramidal skylight. This particular ‘studio’ typology is explored more fully here. While the exterior is a solid white stucco-ed cube, the interior shows a four-square heavy timber frame, with a pair of wood scissor trusses forming a smaller cube at the top, which is itself topped by the skylight proper. Since the geometry is a bit difficult to make out in these projections, I’ll draft up a quick perspective for a subsequent post.

a hillside elevation

2018⋅05⋅15 NS Coleman1 Comment

Most often, architects design with ‘plan as generator’, that is we begin designing a building with the floor plan, and derive all the elevations, sections, and even details from it.

Today, though, is something different. This began as an elevation – what you see above. I was thinking something between Adolf Loos and Irving Gill, with a Richardsonian picturesque quality – a ‘character study’ if you will. A rectangular volume makes up the center with a cubic one stepped down to the right and a smaller cube to the left, with a stair tower at the ‘rear’.

The plan – below – came after, trying to work out precisely how the different squares and modules worked together, playing localized symmetries and forms against one another, and eventually placing a formal parterre garden on the upper level with a pool deck on the lower, while a gravel auto court fleshes out the public side of the property.

a studio, hillside

2018⋅05⋅082018⋅05⋅08 NS Coleman1 Comment

Small (often illegal) studios riddle the Hollywood Hills, where all ilk of entertainment-oriented folk hash out their hits and edit down their next Oscar-worthy performances. . . or so the stereotype goes.

This is such a studio – a miniature white cube set deep into the hillside with a service shed and private garden adjacent. Upon approach, only the pyramidal skylight is visible, slowly revealing the tall archways underneath upon descending a spiral stair. The form itself owes much to both Irving Gill and O.M. Ungers, with a few picturesque moments from Wallace Neff’s Spanish Colonial Revivalism thrown in for good measure. Upcoming posts will feature the interior of the studio, with that large skylight and intricate trusswork above.

eccentrically braced mies

2018⋅04⋅252018⋅04⋅25 NS ColemanLeave a comment

While studying for my last licensing exam, I found some simple and elegant diagrams of different steel frame systems (something like this or this). While the concentrically braced frame has been a hallmark of certain strains of Miesian modernism (Craig Ellwood, anyone? or here), I couldn’t think of an instance where the eccentrically braced frame had made its feature debut. So I drew one. I’ll admit that I had recently had octagon houses on the brain, so that same geometry surfaced here, where the eccentric braces on the four principal facades curve back in on each other to form an interior octagonal form, obscured by the square glazed exterior.

a quonset. a barn. a home.

2018⋅04⋅192018⋅04⋅19 NS ColemanLeave a comment

As any casual observer of this ‘drawg’ will note, I have quite an affinity for the vernacular architectures of the Americas. My family’s winter trips to rural Oklahoma have offered me a greater opportunity to acquaint myself with the seemingly endless variety that the vernacular languages offord.

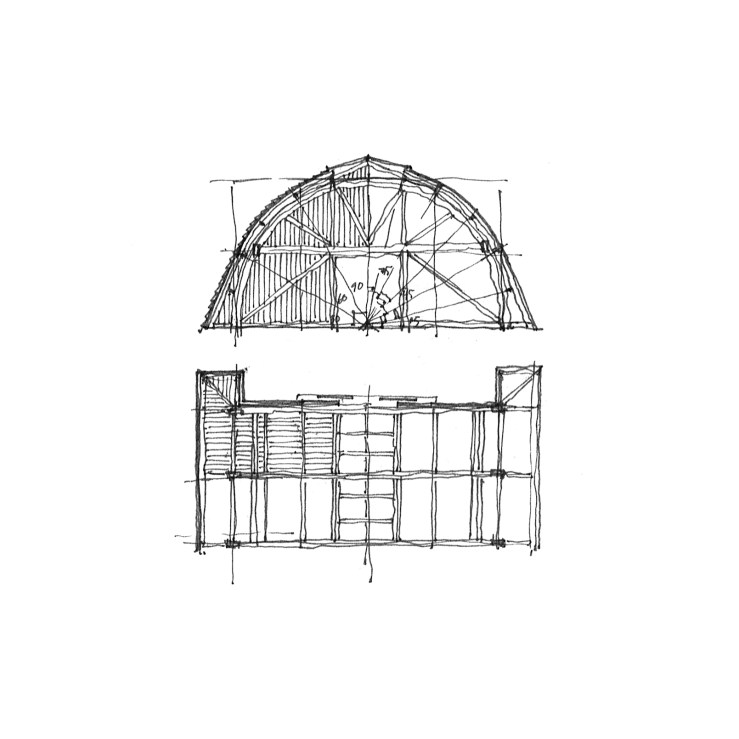

This is yet another home in a barn – yet this time a quonset-roofed barn, where the structural rigidity of the expansive roof comes from its circular geometry rather than the elaborate king-post trusses typical of agrarian structures. The top variation uses shed roof lean-to’s to house ancillary spaces, while placing main living areas under the quonset proper, while the section and plan below explore formal variations on the quonset itself.

at home in a tithe barn

2018⋅01⋅302018⋅01⋅30 NS ColemanLeave a comment

Today’s project takes its impetus from the tithe barn (Fr. grange dimiere), medieval structures used to collect villagers’ tithes, which prior to the proliferation of cash was often given as a portion (one tenth) of the individual’s harvest. These cumulative tithes required an elaborate barn to store them for safekeeping throughout the following year. The structures are fabulous syntheses of the ecclesiastical and the secular – large, windowless stone or brick fortresses with soaring trussed, nave-like, roofs.

Barn conversions are fascinating to me, with the domesticization of the agricultural, and the tithe barn is no less so. This project attempts to take the typical tithe barn and meet it with the domestic, with a large enclosed courtyard to compliment the truss-framed living room.

more octagons

2018⋅01⋅08 NS ColemanLeave a comment

Two more takes on the Victorian-anomaly-Octagon-house. The first is octagonal at the core, with square rooms off of four corners, connected by intermediary porches to form more of a chamfered square at the ground floor, while the octagon proper pierces out at the second story, topped with a tall, Rossi-an turret. The second is more subtle, placing a gabled roof on top of an octagonal plan, with porches on either side at the ground floor.
