This project attempted to talk to both the vernacular-traditionalism v. minimal-modernist dichotomy and the art v. architecture dialogue, taking one of the central figures of American modern art (and himself an influential figure to many American modern architects) and running him alongside a long history of American traditional vernacular form.

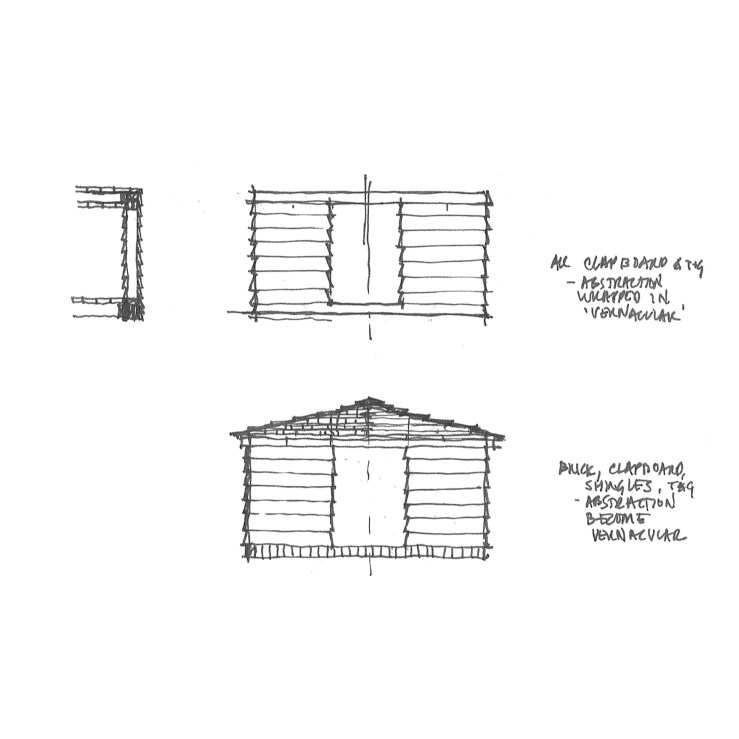

I took a simple, three-square concrete sculpture of his, untitled (1991), and rendered it in the most prototypical of American vernacular architecture, clapboard. One rendition maintains the homogeneity of Judd’s concrete as a single clapboard volume (‘abstraction wrapped in ‘vernacular’ ‘), and the other rendered as a full building, with a shingled roof and brick foundation (‘abstraction become vernacular’).

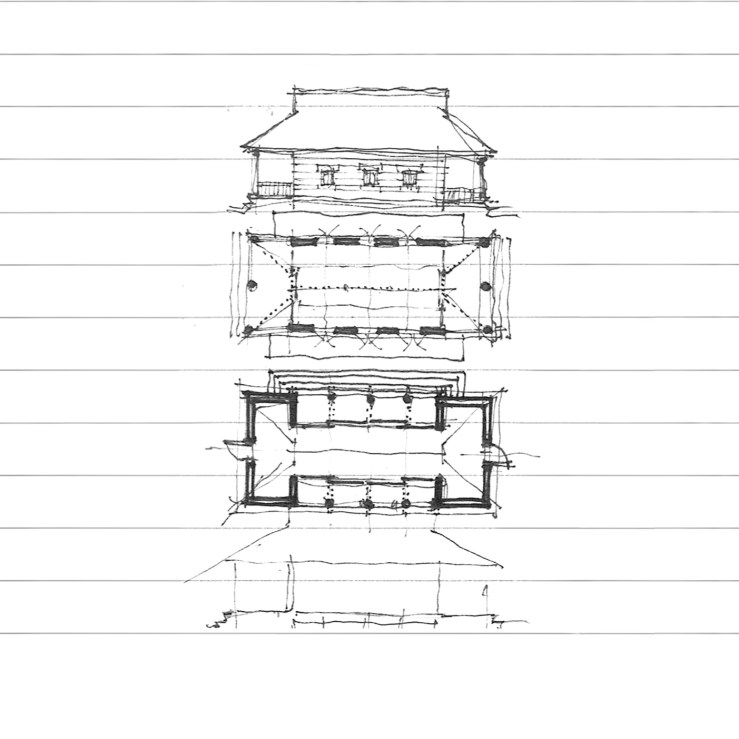

This is a simple, ‘shotgun’ home, with two porches flanking either side, and a large central room in the middle, accentuated by the ‘dutch’ gable of the roof. The ‘opposites’ so named in the post’s title indicate that the ground floor has open porches on the ends with a solid middle, while the semi-enclosed basement has the opposite: enclosed ends and an arcaded middle. This came about through a simple drawing, shown above, where the same parti could easily be rendered in either formation – so why not do both? That hybrid elevation is below, where the opposition of the two systems results in a ‘checkerboard’ pattern, not too dissimilar from Lutyens’ own, larger, experiments.

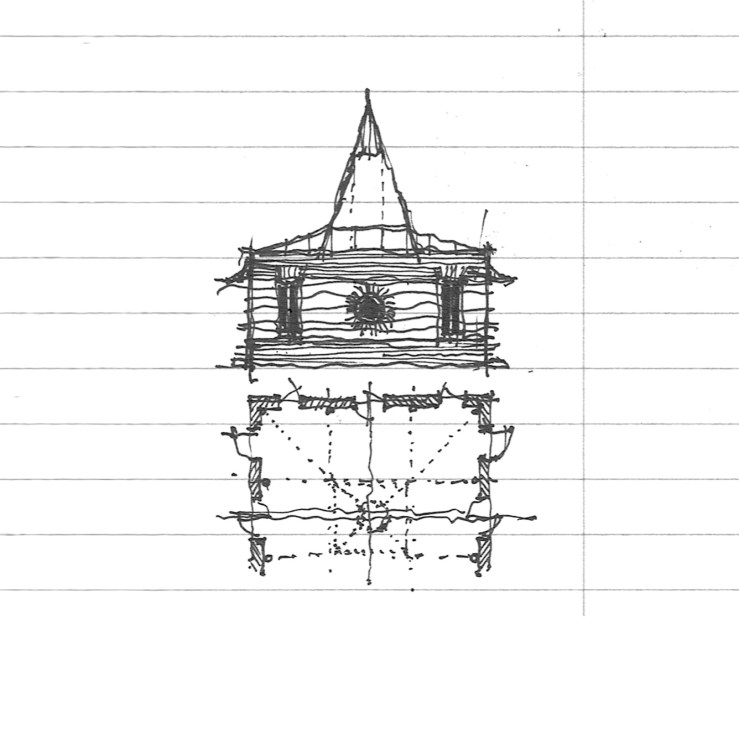

Facade as generator: that is, starting with a facade and working back to a floor plan instead of the opposite, more traditional, fashion. Here, a scored plaster exterior references brick construction, with radiating joints at the circular window and jack arches over the rectangular side windows. A tall pyramidal skylight centers the whole.

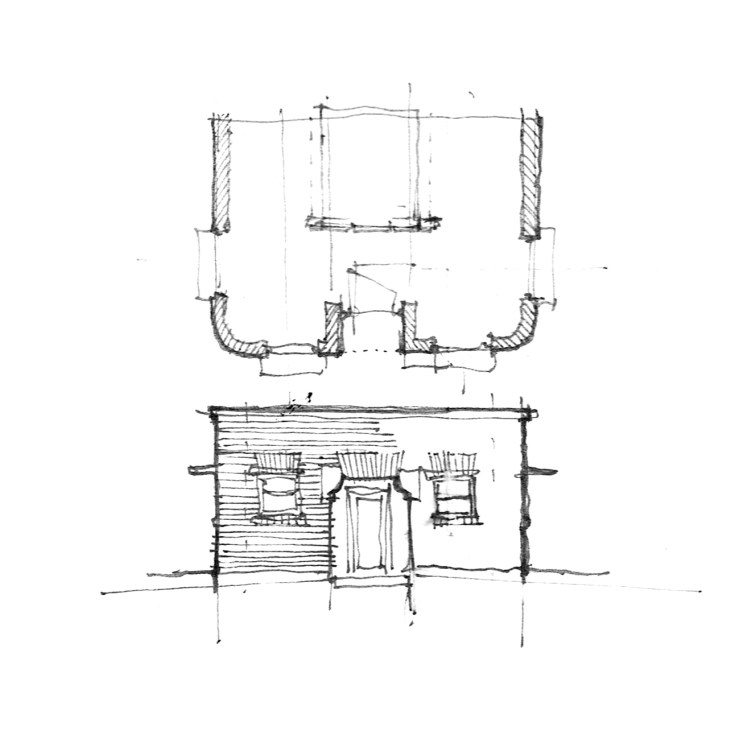

Another facade, this time actual brick with rounded corners, simple square double-hung windows under jack arches with thin metal overhangs and stone shoulders at the inset front door. The plan suggests a small linear courtyard at the center.
This circular rotunda has a few things going on in plan that a section won’t illustrate. But not to mind, for the section shows enough of its own intrigue. The dome is cut, making it shallow at the center than the ends. A large skylight sits above, illustrated here as a small tempietto, a room beyond a room, above which the skylight proper is positioned.

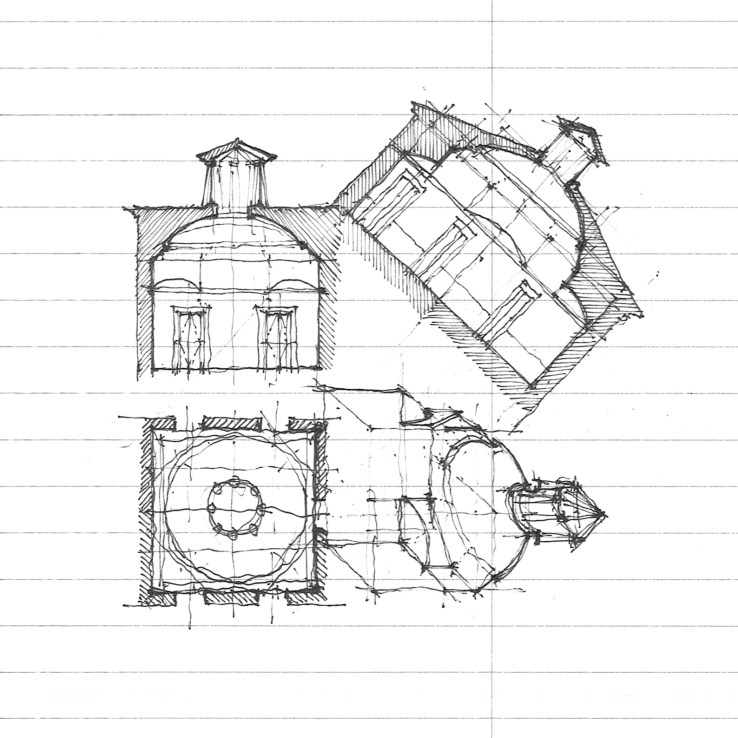

This is a simple room, with a shallow dome set on squinches capping a square room. The whole is topped with a small tempietto-cum-oculus. A perpendicular section (top-left) is paired with a diagonal section (top-right), and a wormseye sectional axonometric on the bottom-right.
I’m fascinated by drawing projections, that is the way that we draw or project the linework of a floor plan into elevations, sections, axonometrics, etc. The drawings I feature here on frame clearly show that. But I know that often the thing to be drawn is often obfuscated by the drawing itself, where the projection can overpower the building itself. Today I present not a project per se, but a series of different projections of the same simple architectural form – a cube with a small dome and oculus.
The simple plan of the upper-left is revealed in simple section and elevation, and explored in two different axonometrics below – aerial and wormseye (upview). Oblique axons, my special sectional wormseye oblique axon, and sectional axons flesh out the sheet.
