triangle meets circle

gallery_05

Further pulling the thread of hidden circular courtyards (here, here, & here), this exploration introduces yet another platonic geometry: the triangle.  Low gables on each facade take the center, allowing colonnades to wrap the acute corners, while a circular colonnade sits in the middle, centered on a triangular obelisk in a circular pool.  Interior spaces are fluid, with low walls and pipe columns hinting at spatial division.  The dialogue between the round courtyard and the triangular roof ridges creates a dynamic interior roof form with exposed rafters throughout.

gallery_06

gallery_07

gallery_08

gallery_09

circles, courtyards, colonnades: a coda

court_05

A study in pure form, this project is a derivative of a previous post, with a curved pediment sits coplanar with the colonnade-cum-pergola that surrounds a circular pool, and some admittedly quirky curved glass-block walls mediating between the three bays of the facade with the smaller volume behind.

another round court

COURT_02

Yesterday’s circular courtyard influenced this take, along with a small fountain I passed by in Beverly Hills the other day.  Six columns make up a circular courtyard, filled with a pool and floating obelisk, while one side of the circular entablature rises to a pediment on one side, hidden from the entry tunnel.  The focus is obviously interior, but that doesn’t mean that the exterior is devoid of a little fun and asymmetry.  A wormseye axonometric above, sections and floor plan below, elevations and roof plan beneath.

COURT_03

COURT_04

a round court

CORTILE-HOUSE_03

I’ve had circles on the brain recently.  Here’s an example of a small project that stemmed from a little single family residential remodel I’m working on, where we’re turning a nondescript backyard into a courtyard, uniting three distinct structures into one in the process.  My version objectifies that courtyard, an off-center circular motor court, with a peristyle all around – porches, porticos, patios, garages, and alleys all spiral off of this singular form.

CORTILE-HOUSE_02CORTILE-HOUSE_01CORTILE-HOUSE_04

shingles, circles, and squares

BEACH-HOUSE_03

This beach cottage betrays symmetry while remaining rigorously modular.  A tower surmounts the concave entry aedicule, a large half-round stair walled in glass block curves back into the square living room, where a circular bay window contrast with the entry, and a long porch is added onto the otherwise square, hip-roofed volume.

BEACH-HOUSE_04

BEACH-HOUSE_01

BEACH-HOUSE_02

shingles, squares, and circles

HOUSE_03

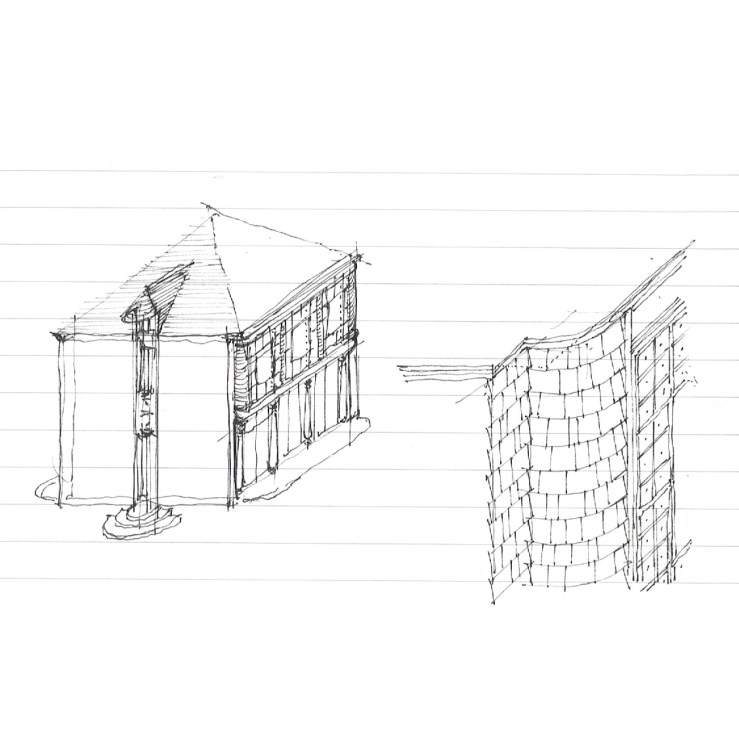

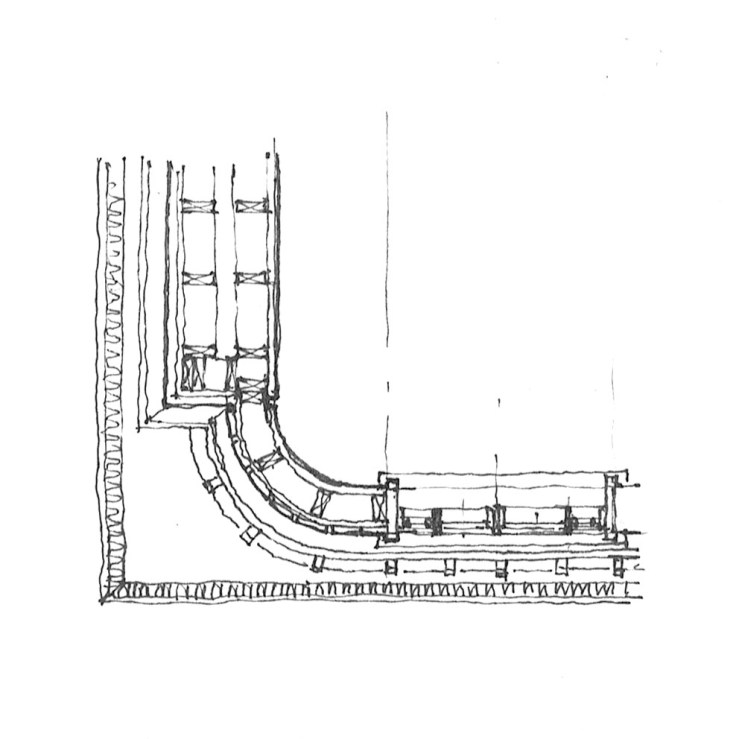

Let’s start with the detail this time, reading top to bottom: 1.) A shingled wall curves in to meet a stucco wall in a re-entrant corner.  Square windows are cut from this, mullioned into the four-square, with small, beveled squares around.  2.) This shingle wall is the second story with a colonnade below, the stucco is an otherwise blank wall, with only one tall window cutting through the middle and terminating in a dormer at the roof.  3.) This tall window only hints at the circular interior volume behind, one side a stair, the other an entry.  Other than that, no record of the two wall systems is traced on the interior, where only the radius of the curve exists.  4.) And just like that, we’re back at the detail again.

HOUSE_04

HOUSE_05

HOUSE_02
