While studying for my last licensing exam, I found some simple and elegant diagrams of different steel frame systems (something like this or this). While the concentrically braced frame has been a hallmark of certain strains of Miesian modernism (Craig Ellwood, anyone? or here), I couldn’t think of an instance where the eccentrically braced frame had made its feature debut. So I drew one. I’ll admit that I had recently had octagon houses on the brain, so that same geometry surfaced here, where the eccentric braces on the four principal facades curve back in on each other to form an interior octagonal form, obscured by the square glazed exterior.
In 1980, Jose Ignacio Linazasoro designed a deceptively simple renovation of a town hall at Segura in the Basque region of Guipuzcoa. While Linazasoro’s current work is of a decidedly modernist vocabulary, his earliest work was more neo-rationalist, taking heavy cues from Rossi and Krier (he even worked in the office of Venturi Scott Brown for a time). The town hall renovation in question reorganized the historic palacio to front an adjacent garden, adding a deep Syrian arch off of a square brick patio, and a long brick-columned pergola overlooking a deep valley and river beyond.
The top drawing outlines the new garden with an idealized ground floor plan of the palacio, while the drawing below is of the square patio itself, complete with herringbone brickwork, stone jointing, and a partial elevation of the archway.
As any casual observer of this ‘drawg’ will note, I have quite an affinity for the vernacular architectures of the Americas. My family’s winter trips to rural Oklahoma have offered me a greater opportunity to acquaint myself with the seemingly endless variety that the vernacular languages offord.
This is yet another home in a barn – yet this time a quonset-roofed barn, where the structural rigidity of the expansive roof comes from its circular geometry rather than the elaborate king-post trusses typical of agrarian structures. The top variation uses shed roof lean-to’s to house ancillary spaces, while placing main living areas under the quonset proper, while the section and plan below explore formal variations on the quonset itself.
The plan above is a direct take on Philip Johnson’s Hodgson House of 1951, at New Canaan, CT. The original is of the same mid-century modernist vein as his own storied Glass House of 1949, also in New Canaan. My version keeps the same U-shaped floor plan, but filled out to take up an entire square, and replaces the focal fireplace wall with a half-round bay. Most dramatically, though, the entire exterior is rendered in brick, including the window openings, which in Johnson’s were a black steel and glass system, no doubt in deep homage to Mies’ contemporary work at IIT, Chicago. A shallow shingled roof completes the traditional restylization, and makes the whole more reminiscent of the earlier Chicago traditions of Richardson & Burnham.

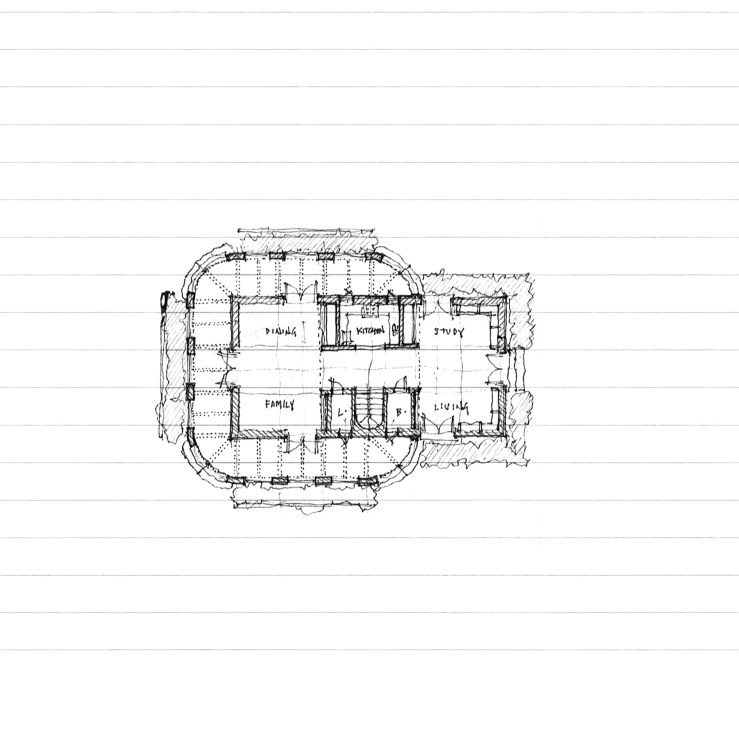

This small home is a take on the shingled row houses of southern New England, particularly by a number of homes I visited on the Rhode Island-Massachusetts border while in graduate school. The volume is a simple cube, wrapped in shingles for three stories, reflected by a nine-square breakdown in floor plan. While the precedent is more humble in its vernacular porch, I’ve given it a more deliberately Grecian portico, with a deliberately pedimented end gable at top. A small ocular window hints at the circular central staircase inside, played against the otherwise rectangular language of the whole.
Having begun my architectural education in Southern California, Mid-Century Modernism (and especially Richard Neutra*) has always held a place of honor in my personal canon – MadMen be damned. Among the Eastern variants of that style, the Harvard Five are most likely the most influential.
Today’s work is a variation on Eliot Noyes’ own home at New Canaan, CT. Effectively, I’ve taken the iconic low-slung, masonry-clad, flat-roofed house and swapped its stylistic elements for more traditional, vernacular ones: an arched entry opens to a colonnaded patio; hip roofs with exposed trusswork sit over the living rooms and bedrooms; and double glass doors replace the sliding panels that so often fail. A brick variation is below, with jack arches in place of the wood trabeation found above.
*Growing up around his buildings at the Crystal Cathedral didn’t hurt either. . .
I don’t know why courtyards intrigue me so much. Perhaps it’s due to my living in the sun-drenched foothills of Southern California, where courtyard typologies have long dotted the land to provide shade in the summer and protect against winter winds.

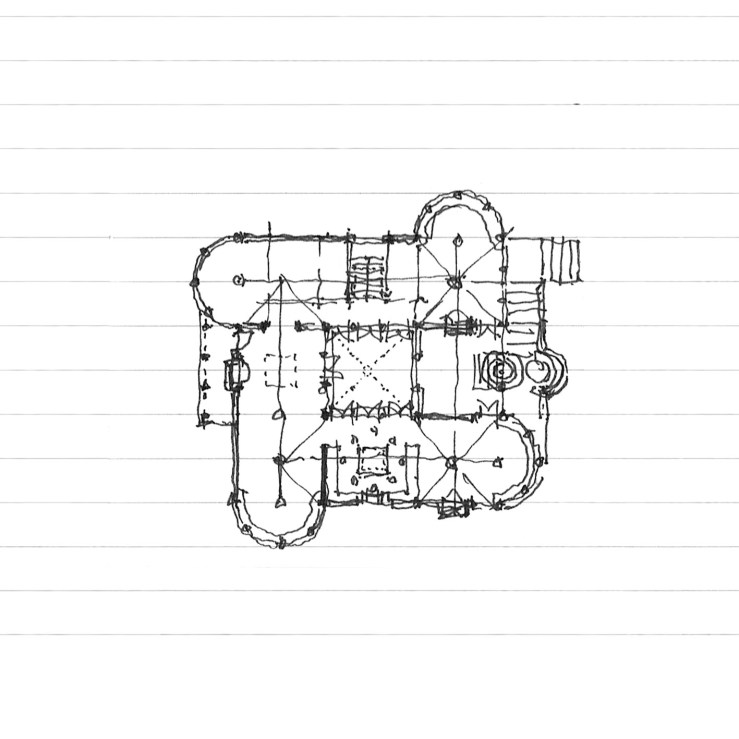

Today’s project is yet another courtyard house. This time stemming from a relative’s home perched atop the rolling hills of San Diego county. The layout is simple: A small patio protects the front door (to the left on the drawing), with a living room just beyond, a dining room to the right, and the kitchen and family room further yet; to the left are bedrooms and baths, with a stair down to a lower level tucked into the hillside below; a central courtyard is flanked by a covered patio which opens onto tiered terraces and stairs beyond.
Formally, my initial studies (below) were rather rectangular, with only one oriel window at the family room. However, I couldn’t resist the fun a pinwheel-ed series of oriels would provide, lending one each to the family room, the master bedroom, a guest bedroom, and the dining room. Here the plan takes cues from McKim Mead & White’s two casinos at Newport (also here) and Narragansett, with a dash of the Bell House (also here). The bottom sketch further investigates a circular series of stairs at the patio, referencing the predominance of half-round oriel figures in the remainder of the plan.

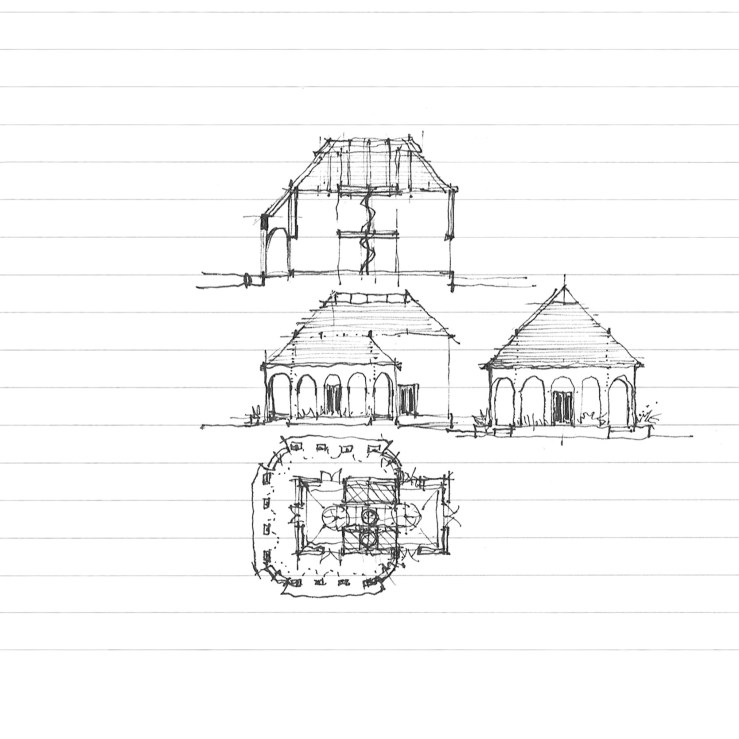

Some time ago, I shared a very Irving-Gill-dependent rectangular home with a wrap-around arcaded veranda. Today, I’m offering a new take on that plan – taking a cue from the Shingle Style and rounding out the corners of the veranda, and subsuming the whole under a large, steeply pitched hip roof. Here, the veranda is more closely tied to the rectangular volume behind it, rather than merely acting as a stand-alone wrapper. Personally, I find both equally interesting, but I’ll let you take your pick.
There’s a single family house in my neighborhood that was at one time wrapped in a deep arcade. Though rotting and falling apart (and no doubt unpermitted), the regular rhythm of the arches masks the asymmetrically placed windows and doors behind. I tied this with Irving Gill’s Oceanside City Hall of 1934 (also here), which uses an arcade in a similar fashion, to regularize an otherwise syncopated facade.
Today’s project takes Gill’s more refined use of the arcade and applies it to the single family home, a typical, asymmetrical, single story, home not unlike many here in Southern California (and indeed in many suburban neighborhoods). This results in some interesting conditions, with some occupied spaces pushed right up behind the arcade while leaving shallow porches elsewhere, and even enclosing a small garden within its bounds.
The options below take the same floor plan of above, but add a second floor, positioning the arcade proper against taller volumes behind.

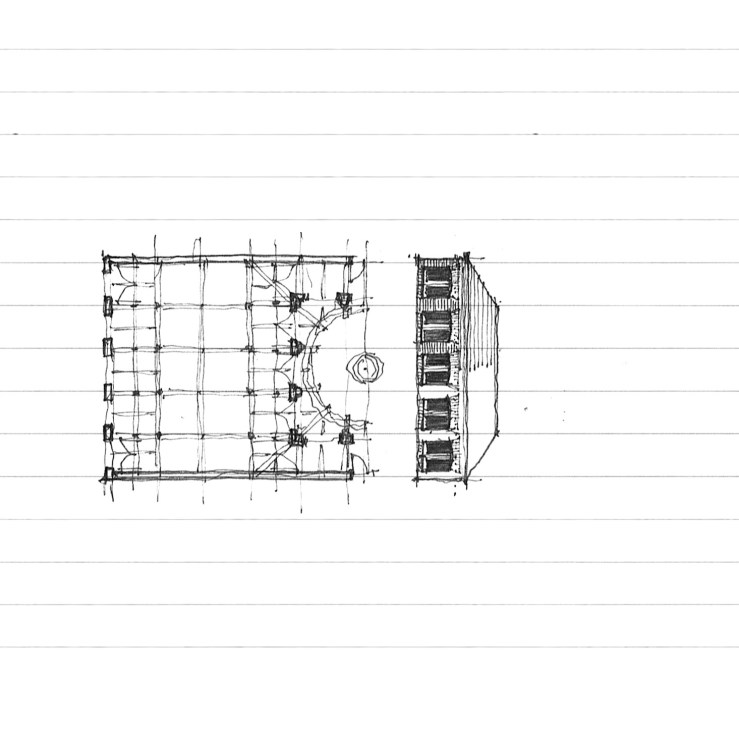

Today’s project takes its impetus from the tithe barn (Fr. grange dimiere), medieval structures used to collect villagers’ tithes, which prior to the proliferation of cash was often given as a portion (one tenth) of the individual’s harvest. These cumulative tithes required an elaborate barn to store them for safekeeping throughout the following year. The structures are fabulous syntheses of the ecclesiastical and the secular – large, windowless stone or brick fortresses with soaring trussed, nave-like, roofs.
Barn conversions are fascinating to me, with the domesticization of the agricultural, and the tithe barn is no less so. This project attempts to take the typical tithe barn and meet it with the domestic, with a large enclosed courtyard to compliment the truss-framed living room.
