Today, a barn, a square, and some fun with drawing projections. If you’ve spent any time looking at my posts, you’ll know that I have a penchant for vernacular architectures, especially the banal agricultural buildings that dot the majority of America’s varied landscapes. The barn is probably the epitome of those forms, and heavy timber framed barns seem to more or less rise from the earth itself.
This particular barn is my interpretation of the timber framed variety, with my love of formal rigor – the square. The plan is a large four-square frame, with a double-wide central ‘nave’ and two single-wide ‘aisles’. Large, folding doors frame the ends, with small punched windows the sides. Since this barn is not intended to be utilitarian, the flooring is gridded black basalt pavers, with two large concrete decks on either end.

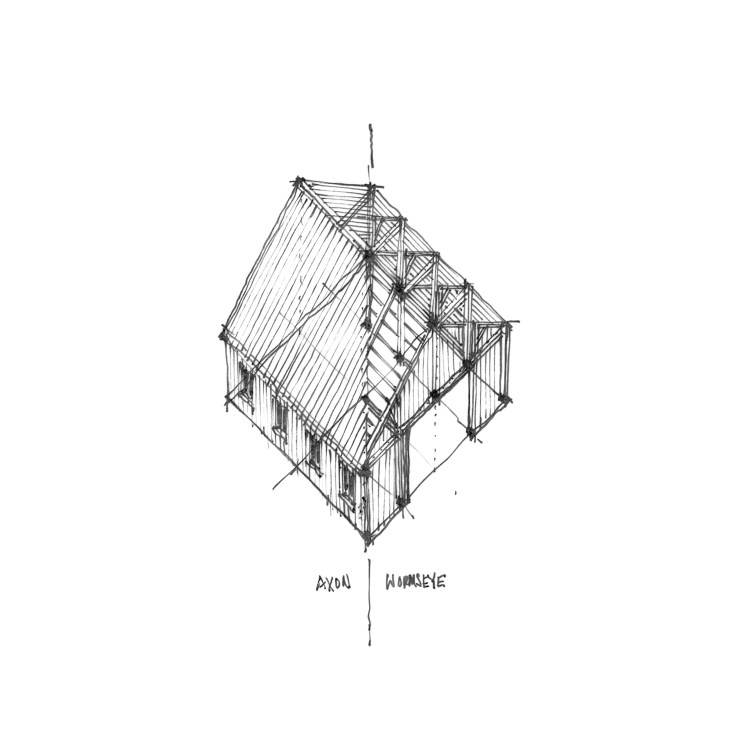

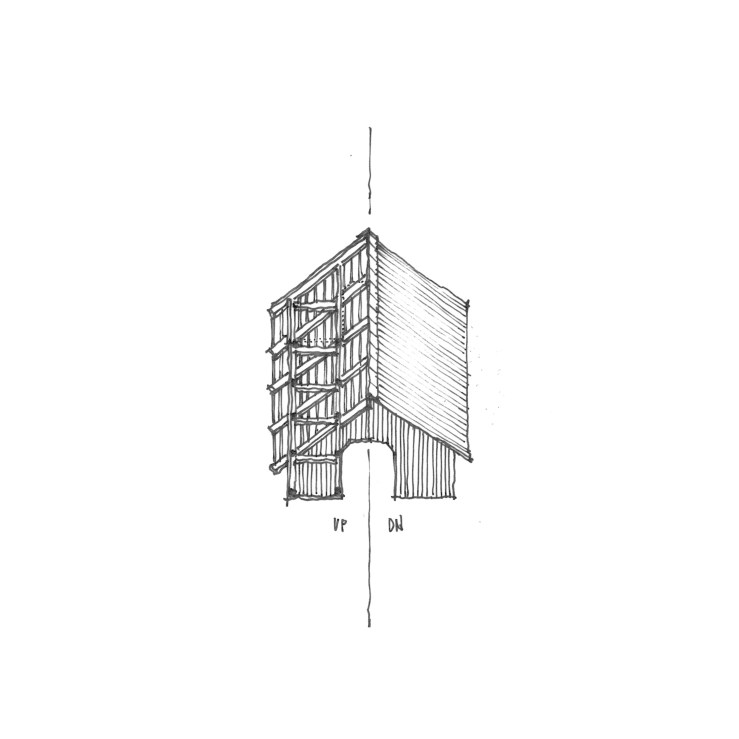

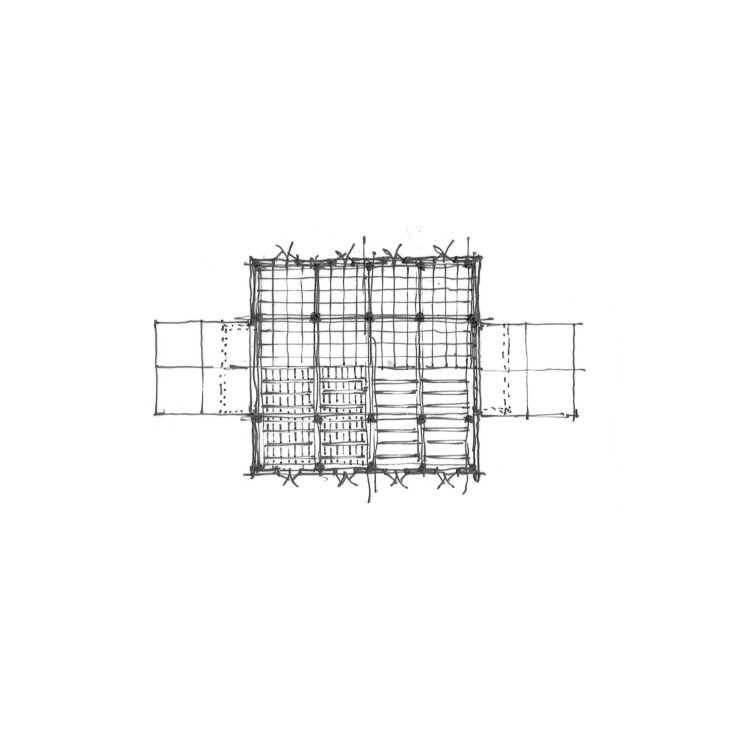

The drawings are all halves – the plan is half floor plan, half roof plan; the axonometric is half aerial, half wormseye; the oblique axon is also half & half; the elevation is half the side, half the front.
