of all the burger joints in all the world

2016⋅06⋅162016⋅06⋅16 NS Coleman1 Comment

HAMBURGERS_01

I was waiting in the drive-thru line at that iconic California burger stand when I began to think of all the ways that the concrete masonry building was banal. And yet, with a few interesting moments – the angled drive-up windows, for instance. My proposal takes that window and wraps it over the entire rear of the building, Mies-like, allowing customers in the car to watch their burgers hop off the line. The dine-in patio is flanked with stylized palm tree columns, hinting back to Hans Hollein and John Nash before him. A central oculus sits over the point-of-sale, with the iconic red standing-seam metal roof rendered as a hip.

HAMBURGERS_04

HAMBURGERS_02

HAMBURGERS_03

a bay window

2016⋅06⋅152016⋅06⋅15 NS ColemanLeave a comment

BAY-WINDOW_01

A bay window topped with a full-width gable, leaving small triangular soffits at the eaves. I noticed this feature on my way to a site meeting in South Los Angeles, and since then have seen it recurring throughout my library – Richardson, Bruce Price, Peabody & Stearns, et al. So here’s my version: covered in shingles throughout, battered stone walls at grade, four-square windows, the gable becomes a full pediment, and the big reveal – a rounded interior wall.

a mountain-side courtyard home

2016⋅06⋅14 NS ColemanLeave a comment

COURTYARD-HOUSE_03

This house is a line of three squares: a central tree-filled courtyard flanked by a garage/studio impluvium volume on one end, and a large, hip-roofed residence on the other. The rafters of this roof extend to encapsulate a long porch, the majority of which is screened. A spiral staircase descends to the bedrooms, which are located below. The complex is imagined to be sited on a hillside, with the garage square nearly underground, and the residence looking out over the valley below.

COURTYARD-HOUSE_04

COURTYARD-HOUSE_05

COURTYARD-HOUSE_01

lewerentz’s crematorium at malmö

2016⋅06⋅132016⋅06⋅13 NS ColemanLeave a comment

LEWERENTZ_01

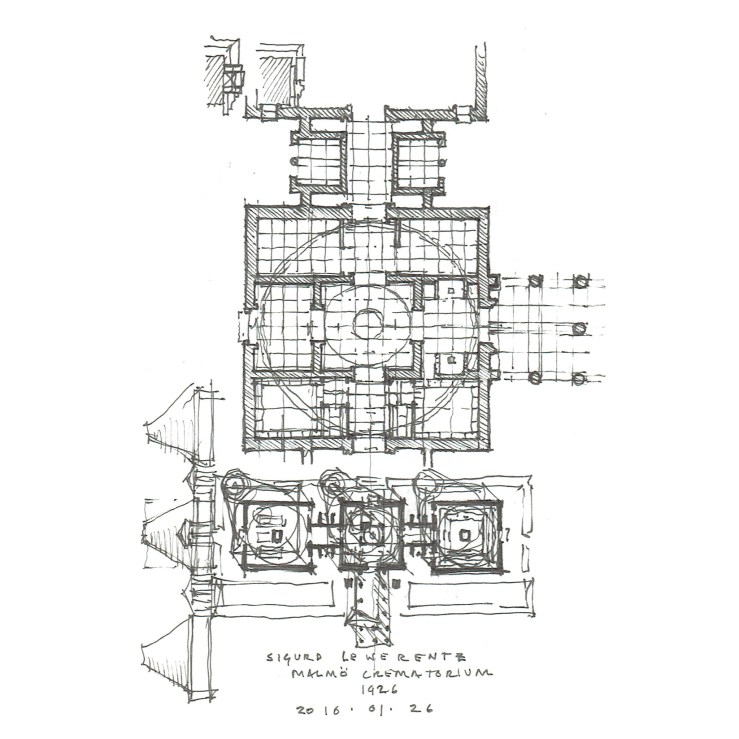

An unbuilt project for a crematorium complex at Malmö, Sweden. Three conical brick chimneys top square window-less boxes, with small temples linking them one to another. An elongated temple-fronted portico acts as the formal entry at the center volume.

an homage to a romanesque church

2016⋅06⋅102016⋅06⋅10 NS ColemanLeave a comment

NARANCO_01

Santa Maria del Naranco was not built as a church, but rather a palace, and is thus an atypical church plan. My interpretation of it is devoid of any ecclesiastical use, and reverts back to a folly. I’ve stripped it of the Romanesque ornament and overlaid a Grecian pediment, corners similar to the Monadnock Building in Chicago, and stripped modernist interiors.

NARANCO_02

richardson, over and over

2016⋅06⋅092016⋅06⋅09 NS ColemanLeave a comment

RICHARDSON_03

I can be terribly repetitive. My sketchbooks will tell you that, where dozens of imperceptibly different iterations of a single project follow one another, page after page. Similarly, when I start down a trail of inquiry I’m soon immersed. And when I start drawing, I go on and on. So is my fascination with Henry Hobson Richardson – and I’ll share three different pieces from my studies: Top, von Herkomer Residence, 1886; Below, Ames Memorial Library, 1877; Bottom, Trinity Church Rectory, 1880.

RICHARDSON_02

RICHARDSON_01

a beach cottage

2016⋅06⋅082016⋅06⋅08 NS ColemanLeave a comment

COTTAGE_01

Taking cues from Shingle Style residences mixed with a fair amount of Richardson (red mortar on Flemish-bond brick and rough-faced ashlar masonry much?) and a bit of my own preferences for industrial sash windows and rigid geometries, this little cottage is organized around a nine-square plan, with cramped interior rooms and no central ‘Hall’, thereby favoring the large screened porch at the rear.

COTTAGE_02

kirk, meeting house, and basilica

2016⋅06⋅07 NS ColemanLeave a comment

MEETING-HOUSE_04

This church type is actually a collection of types – a Colonial American meeting house makes up the sanctuary, while flanked with the choir and apse of a more traditional Anglican church, accessed by an almost domestic-scaled atrium. The level of detail and poche changes with each individual element.

MEETING-HOUSE_02

MEETING-HOUSE_01

MEETING-HOUSE_03

schinkel sings

2016⋅06⋅062016⋅06⋅06 NS ColemanLeave a comment

SCHINKEL_04

Or rather, his Singakademie sings. . . or something like that.

A standard basilica form sits completely within a Greek-gabled stone volume, but with a wonderful circular stepped dias for the vocalists (er, singers). This circular form is duplicated in the barrel vaulting at the ceiling. A Doric peristyle surrounds. I’ve overlaid plans, sections, and elevations on one another to show the full effect. A similar theme pervades the church design shown below.

SCHINKEL_03

me, myself, and mine

2016⋅06⋅03 NS Coleman1 Comment

BATHROOM_05

Today is the day I celebrate my birth into this crazy world. So I’ll take this time to share some personal drawings: my house, or rather the little nooks and crannies of it that I’d like to alter, shift, sheathe, or paint. There’s a lot of me here, my confusion, my interests, my unrest, as well as where I sleep, read, eat, and otherwise live. There are bathrooms (above and just below), staircases (below), ceilings (below), gardens (bottom), and wainscotts throughout. Enjoy.

BATHROOM_01
